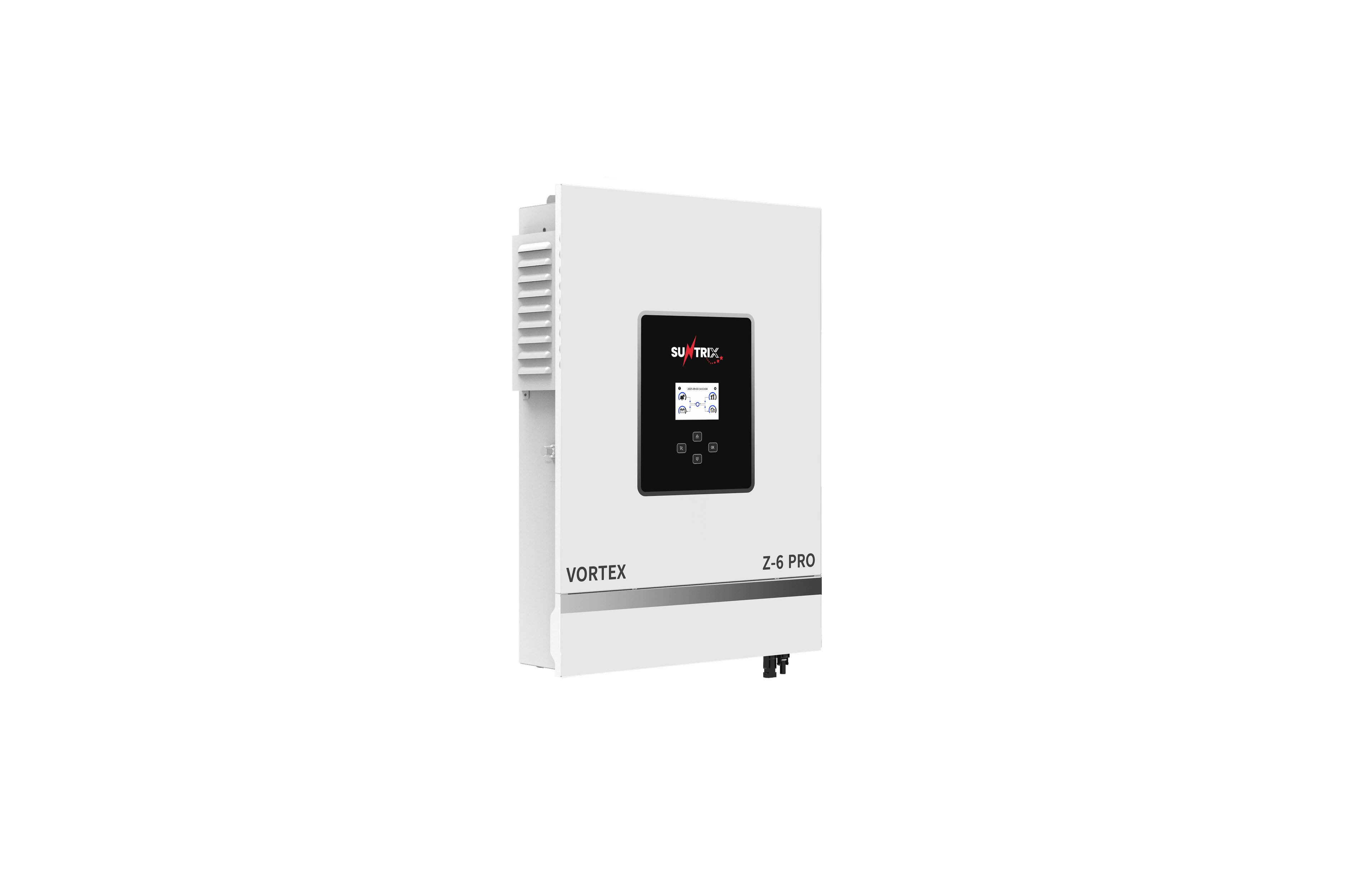

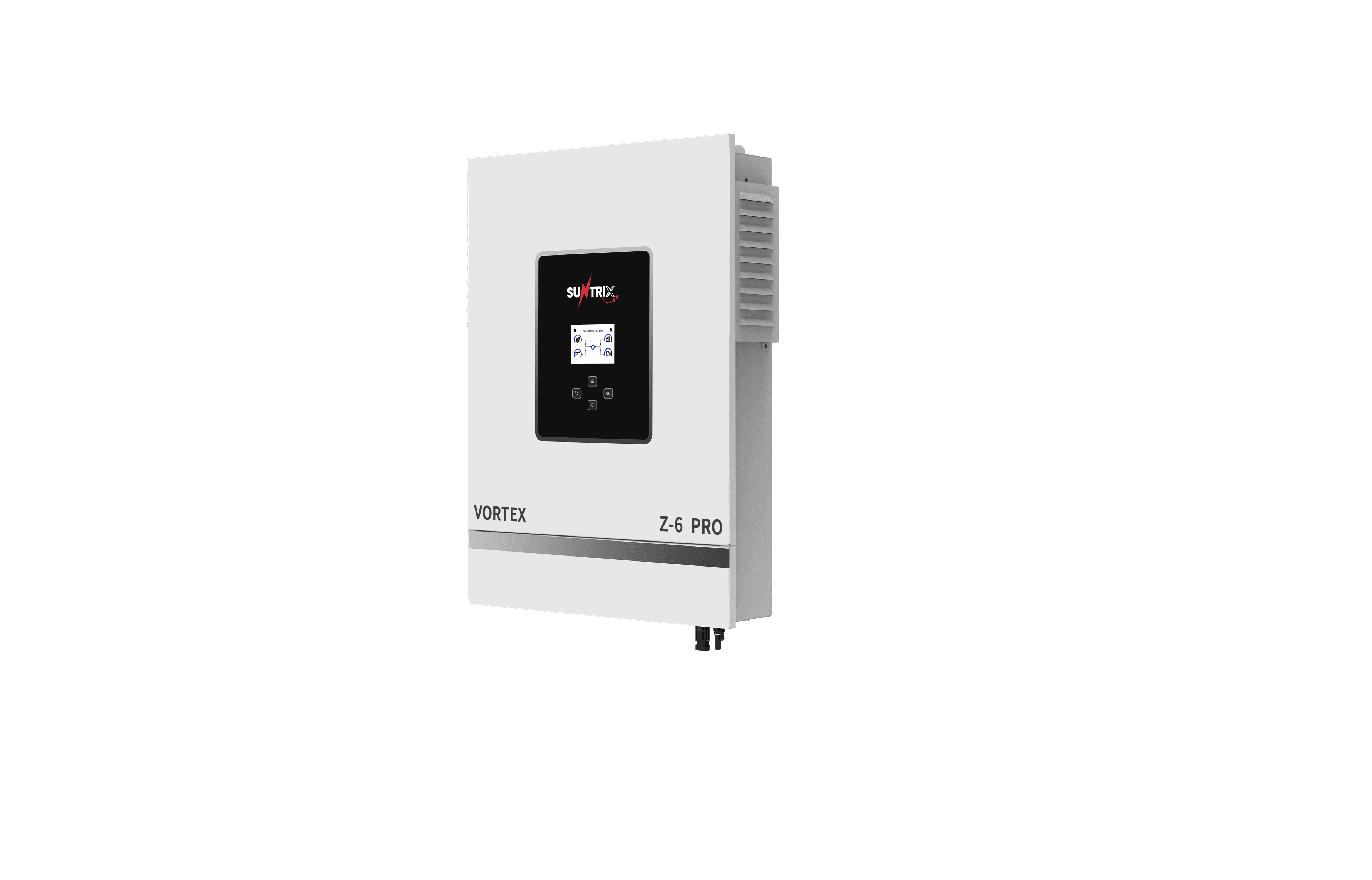

Suntrix Vortex Z-6 PRO 6kW Solar Inverter | IP54, Wi-Fi, 5-Year Warranty
The Suntrix Vortex Z-6 PRO is a 6kW hybrid solar inverter engineered for Pakistani homes and small commercial loads that demand reliability, weather resistance, and intelligent energy management. Built with an IP54-rated enclosure, this hybrid inverter delivers continuous 6000VA / 6000W pure sine wave output, supports 9000W max PV input through a single high-efficiency MPPT (60–450V range), and seamlessly integrates with 48V lithium or lead-acid batteries. With built-in Wi-Fi remote monitoring via the SmartValue App, dual AC output for smart load management, parallel connection support up to 9 units (54kW total), and 97%+ peak efficiency, the Vortex Z-6 PRO is the smart choice for net-metering, hybrid backup, and off-grid solar installations across Pakistan. Backed by Suntrix's industry-leading 5-year warranty (3 years free parts replacement + 2 years free service), it is designed for harsh outdoor conditions, fast switch-over (10ms UPS mode), and trouble-free 24/7 operation.
Key Specifications
IP54
High level protection
LCD Color
Screen Operation
Smart Load Management
Dual AC Output Design
Built-in Wi-Fi
Remote Monitoring with SmartValue APP
Single PV
Operation Supported
Support dry contact
Starting generator (Optional)
MPPT Current
The maximum current of single string module is 27A
Parallel Connection
Parallel Connections up to 9 Units
MPPT Range
Voltage Range: 60–450V
5 Year Warranty
NEPRA Certified
Free Installation Support
Specifications
Technical Specifications
| Specification | Value |
|---|---|
Max. Operating Altitude(m) | Derating over 1000m, Max 4000m, Refer to IEC62040 |
Display | LCD |
Dimension (W X H X D)(mm) | 490 X 380 X 113 |
Number of parallel | 9 |
Weight(kg) | 12.4 |
Operating Temperature Range | -10°C to 60°C |
Relative Humidity | 5% - 95% (Non-condensing) |
Standard | IEC61683, IEC61000, IEC 62109-1/2 |
Communication | RS232, Wi-Fi, RS485 |
Protection Degree | IP54 |
Installation method | Wall-mounted |
| Specification | Value |
|---|---|
Max. PV Input Power(W) | 9000 |
Number of MPPT Trackers | 1 |
Max. Current per MPPT(A) | 27 |
Max. PV Input Voltage(V) | 60-450 |
Max. PV Input Voltage(V) | 500 |
| Specification | Value |
|---|---|
Rated Power | 6000VA/6000W |
| Specification | Value |
|---|---|
Switch Time(ms) | 10mS (@UPS) |
Rated AC Output Power(W) | 6000 |
Max Efficiency | 0.98 |
Rated voltage | 220/230/240VAC |
Rated Frequency | 50/60Hz |
Output Voltage Waveform | Pure Sine Wave |
Peak Output Power, Time | 60S@102%-120% Load: 10S@ 120% |
Rated Output Current(A) | 26.1 |
| Specification | Value |
|---|---|
Integrated | Over Current Protection / Over and under Voltage Protection / Output Short Circuit Protection / Over-temperature protection / Over and under Frequency Protection / Surge Protection |
| Specification | Value |
|---|---|
Max. Charging Current(A) | 120 |
Battery Voltage(V) | 48 |
Float Charging Voltage(V) | 54 |
Battery Type | Lithium, Lead-acid |
| Specification | Value |
|---|---|
Battery Type | Lithium, Lead-acid |
Max. Charging Current(A) | 120 |
Battery Voltage(V) | 48 |
Float Charging Voltage(V) | 54 |
