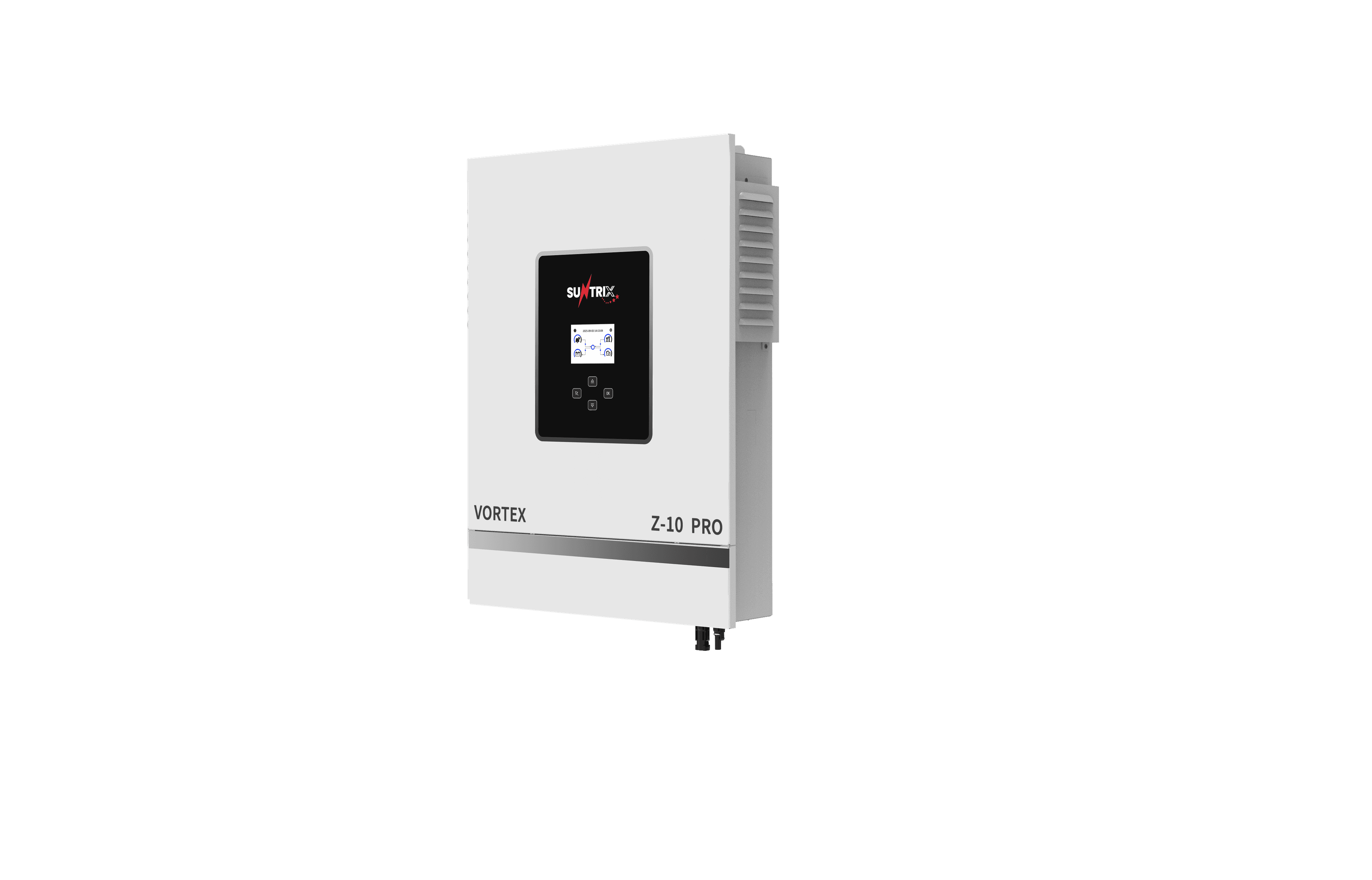

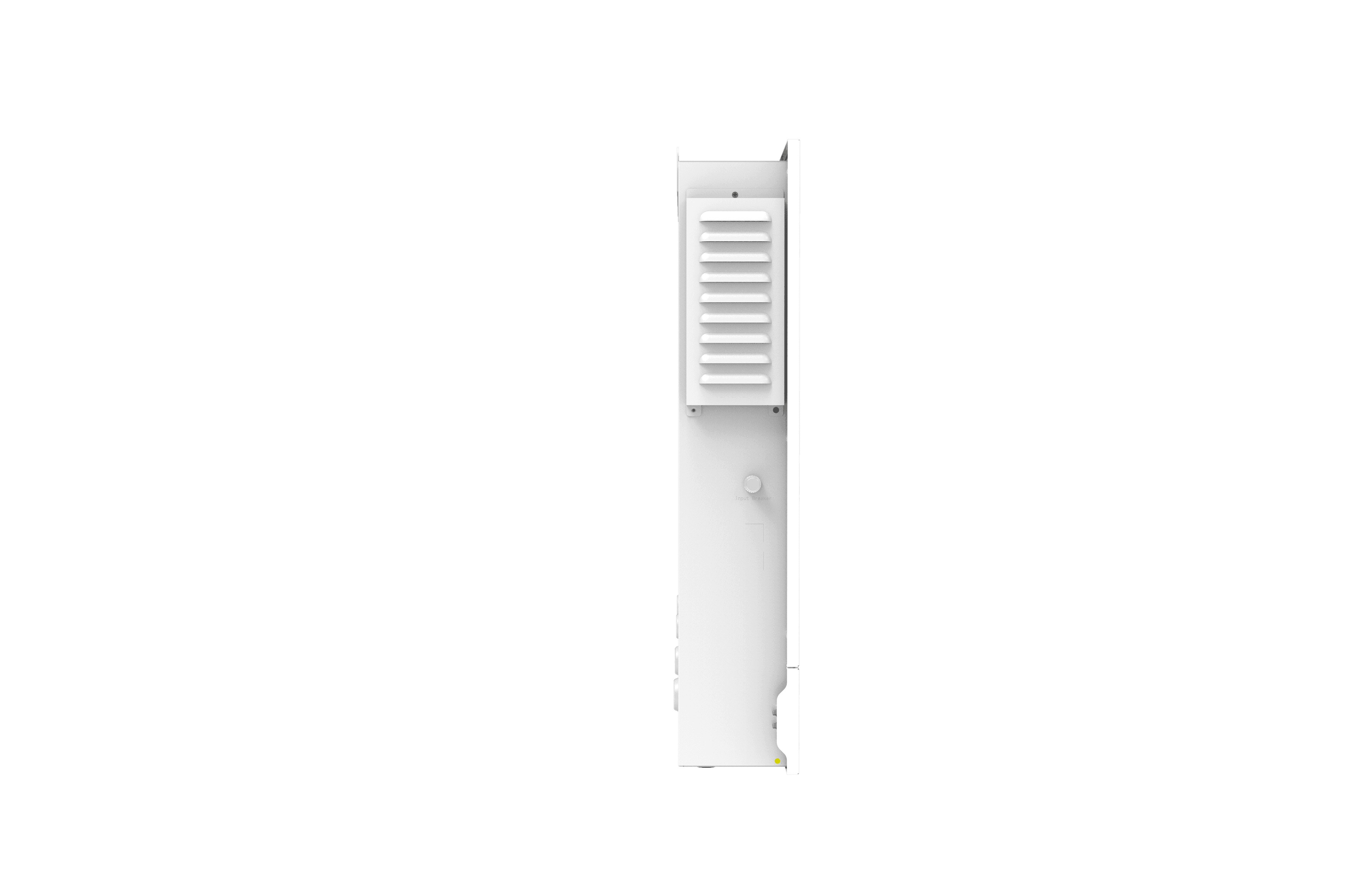

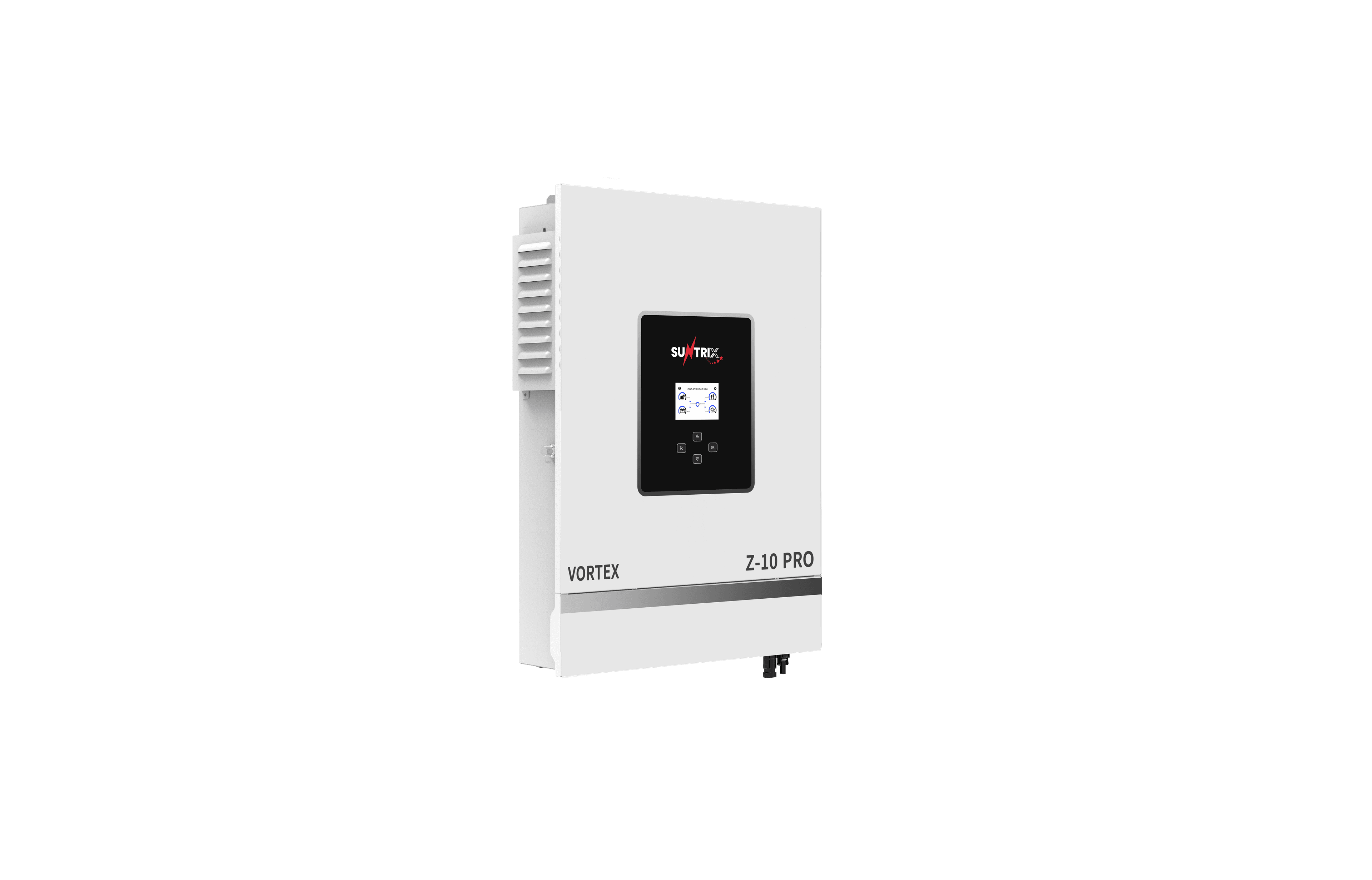

Suntrix Vortex Z-10 PRO 10kW Solar Inverter | Dual MPPT, IP54, Wi-Fi, 5-Year Warranty

The Suntrix Vortex Z-10 PRO is a powerful 10kW hybrid solar inverter designed for large homes, commercial buildings, farms, and net-metering systems across Pakistan. Equipped with dual MPPT trackers (2 × 7500W = 15,000W max PV input), an IP54 weatherproof enclosure, and a wide 60–450V MPPT range, the Z-10 PRO maximizes solar harvest under variable conditions while delivering a reliable 10000VA / 10000W pure sine wave output. With built-in Wi-Fi and the SmartValue App for remote monitoring, smart load management via dual AC output, support for 48V lithium and lead-acid batteries (up to 160A charging), and parallel scalability up to 6 units (60kW total), the Vortex Z-10 PRO is engineered for serious solar investors. Its 10ms UPS switch time, 98% peak efficiency, comprehensive electrical protections, and IEC-certified compliance make it an ideal choice for hybrid backup, grid-tie, and off-grid solar installations. Backed by a 5-year Suntrix warranty (3 years parts + 2 years service).

Key Specifications

• High level protection

  IP54

• Screen Operation

  LCD Color

• Dual AC Output Design

  Smart Load Management

• Remote Monitoring with SmartValue APP

  Built-in Wi-Fi

• Operation Supported

  Single PV

• Starting generator (Optional)

  Support dry contact

• The maximum current of single string module is 27A

  MPPT Current

• Parallel Connections up to 6 Units

  Parallel Connection

• Voltage Range: 60–450V

  MPPT Range
