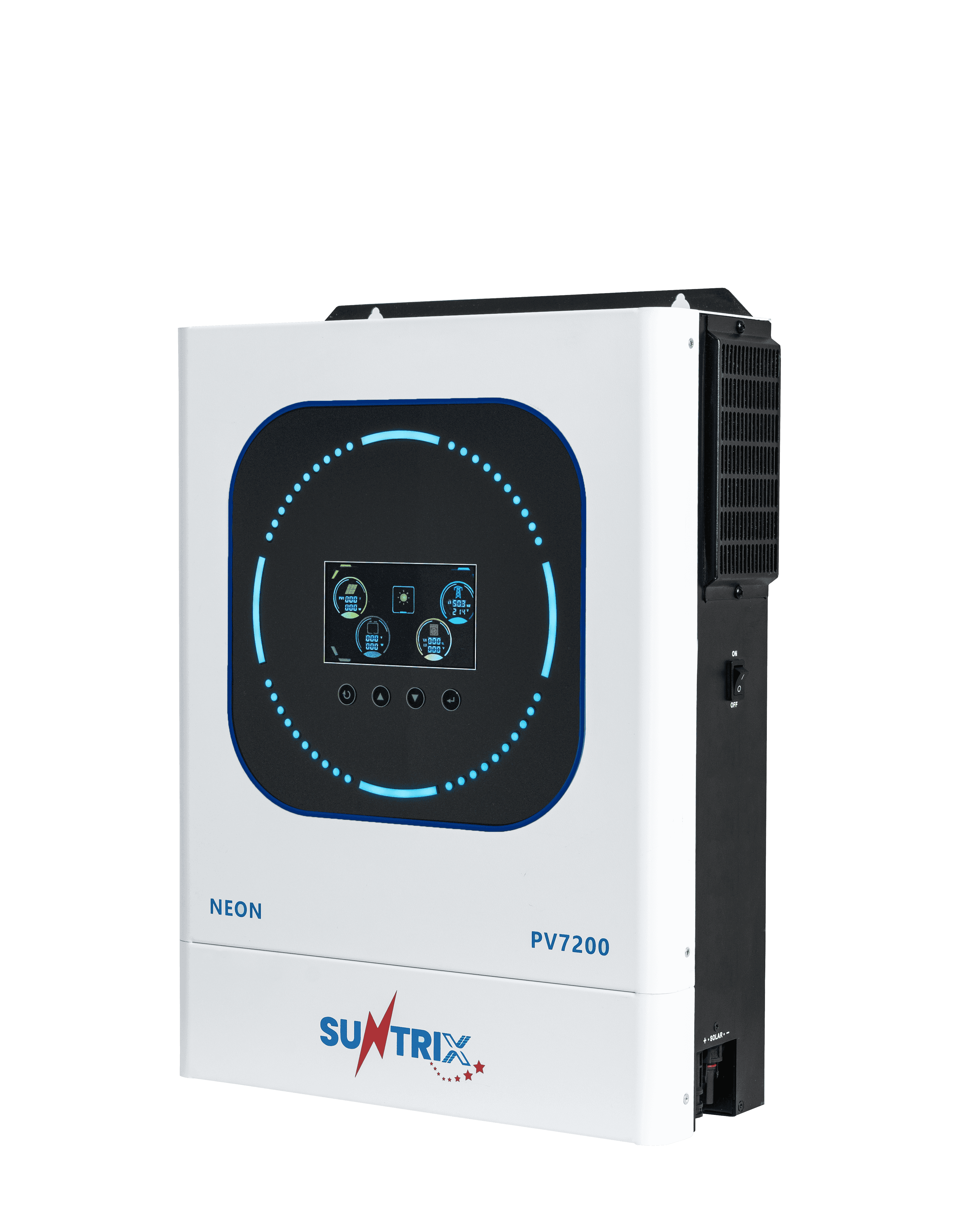

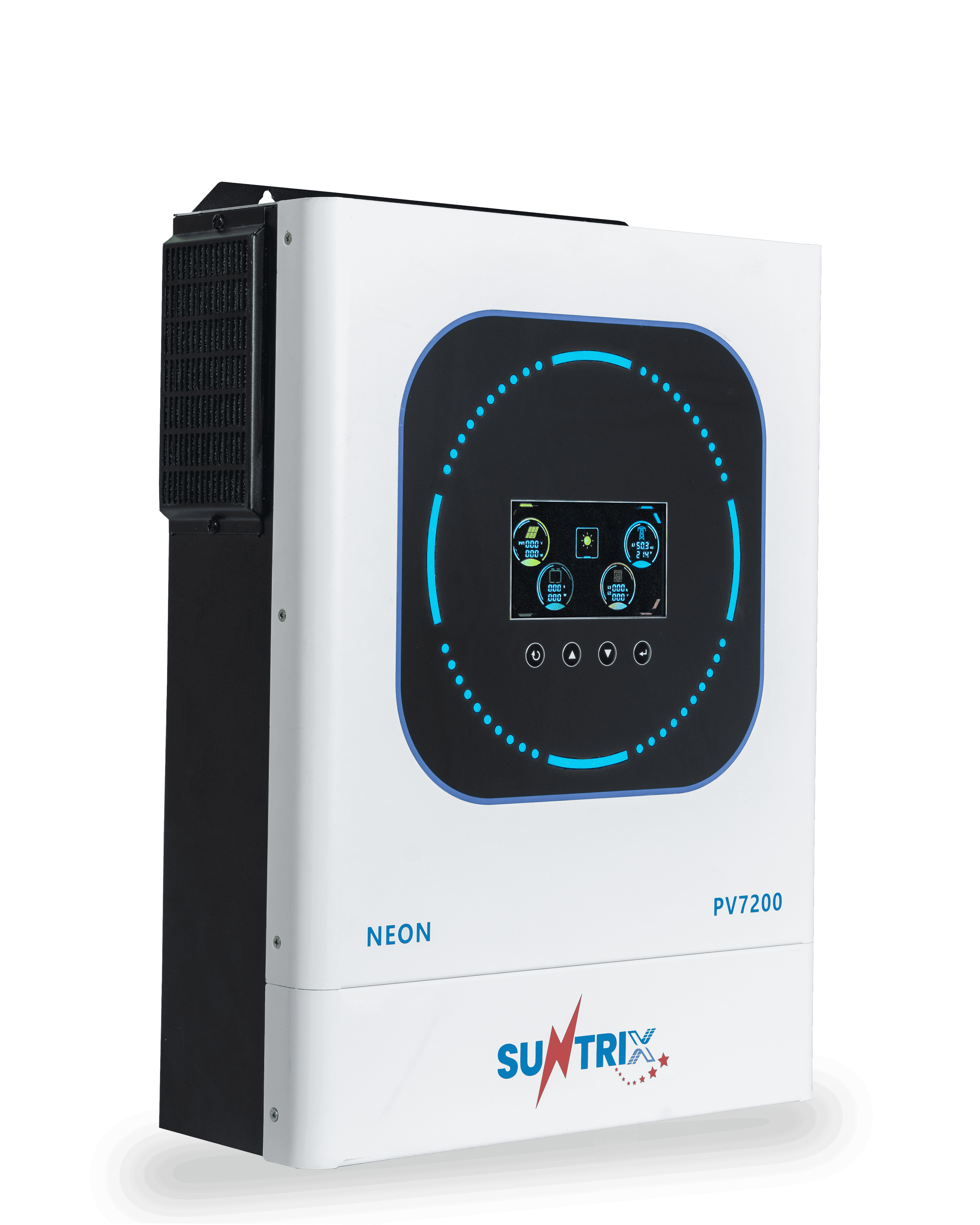

Suntrix Neon PV7200 – 6.2kW Hybrid Solar Inverter

5.0 (1,200 reviews)

The Suntrix NEON PV7200 is a high-capacity 6.2kW hybrid solar inverter built for homes and commercial setups requiring reliable and efficient power management. With advanced MPPT technology, dual AC output support, and seamless integration of solar, grid, and battery systems, it ensures maximum energy utilization and uninterrupted performance. Its pure sine wave output, smart monitoring, and robust protection features make it an ideal solution for stable and efficient power supply.

Key Specifications

Power
6.2kW
Efficiency
96%

Get a Quote

5 Year Warranty

NEPRA Certified

Free Installation Support

Specifications

Technical Specifications

Specification	Value
Waveform	Pure Sine wave
Peak Efficiency	94%
Admissible Power Factor	0.6-1 (inductive or capacitive)
Dual Outputs	Yes
Nominal Voltage	220/230VAC ±5%
Surge Power	12400VA
Frequency	50/60 Hz
Overload Protection	5s@≥140% load; 10s@100%-140% load
Transfer Time	10ms (For personal Computer); 20ms (For Home Appliances)

Specification	Value
PV Array MPPT Voltage Range	60VDC-500VDC
Solar Charger Type	MPPT
Max. Solar Charge Current	120A
Max. AC Charge Current	80A
Max. PV Array Power	7200W
Max. PV Array Open Circuit Voltage	500VDC
Max. Charge Current (AC+PV)	120A
Max. Solar Input Current	1 / 27A

Specification	Value
Selectable Voltage Range	170-280VAC (For personal Computer); 90-280VAC (For Home Appliances)
Frequency Range	50/60 Hz (Auto sensing)
Voltage	230 VAC

Specification	Value
Overcharge Protection	63VDC
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Charging Method	CC/CV

Specification	Value
LCD	Colorful Screen+RGB Light
Net Weight (Kgs)	10.5
Package Dimensions (D X W X H)	527x390x220 mm
Communication Interface	RS485(RJ45)/RS232(DB9)
Dimensions (D X W X H)	438x312x122 mm

Specification	Value
Operating Temperature Range	-10°C to 50°C
Humidity	5% to 95% Relative Humidity (Non-condensing)
Storage Temperature	-15°C to 50°C

Specification	Value
Maximum AC Output Power	6200W
Maximum PV Input Power	7200W
PHASE	1-Phase In / 1-Phase Out
