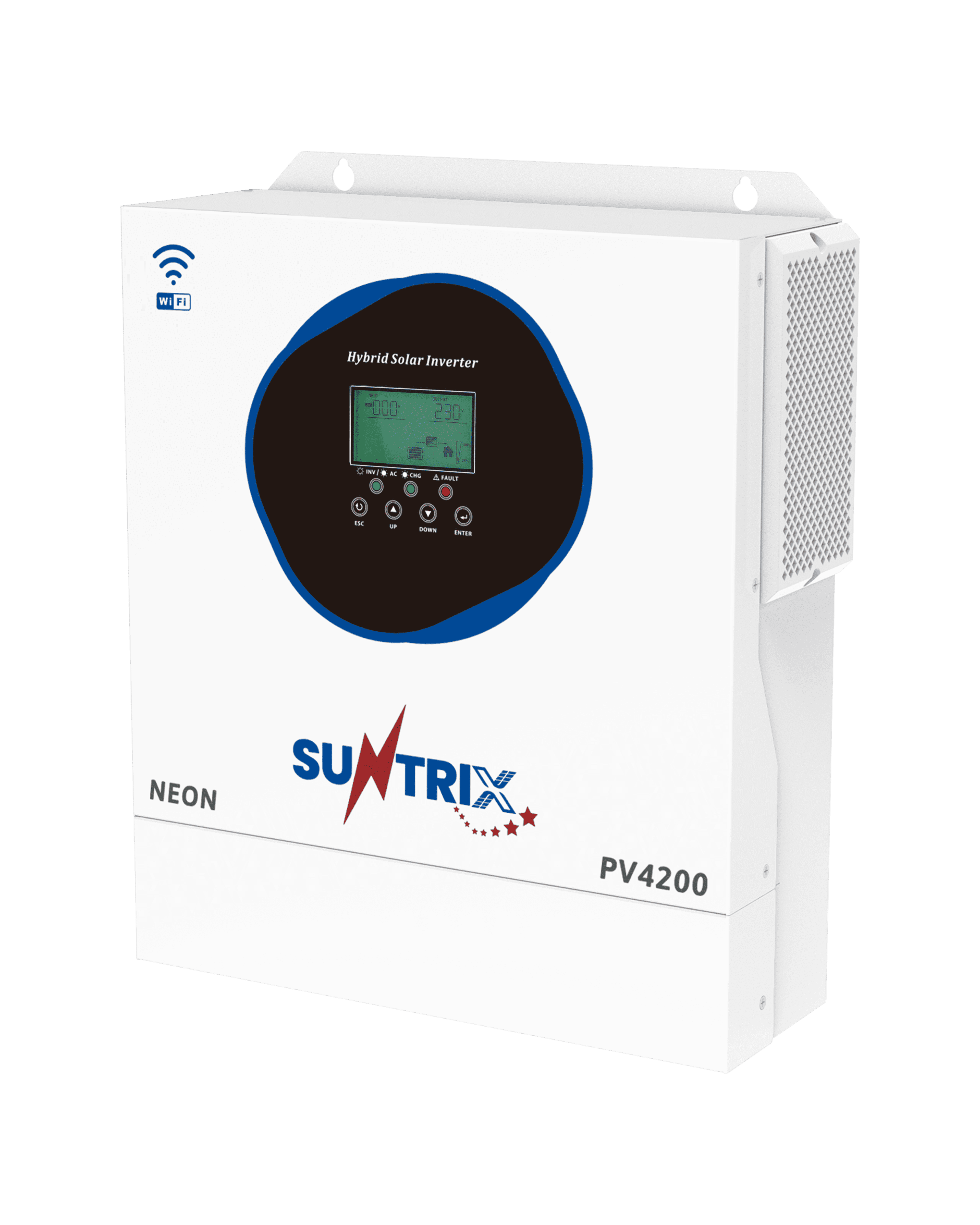

Suntrix Neon PV4200 – 3.5kW Hybrid Solar Inverter
5.0 (7,761 reviews)
The Suntrix NEON PV4200 is a powerful and compact 3.5kW hybrid solar inverter designed for homes and small businesses. It delivers efficient energy conversion with advanced MPPT technology, pure sine wave output, and seamless operation with or without batteries. With built-in WiFi monitoring, wide PV input range, and reliable performance, it ensures uninterrupted power and maximum solar utilization for everyday energy needs.
Key Specifications
Power
3.5kW
Efficiency
96%
5 Year Warranty
NEPRA Certified
Free Installation Support
Specifications
Technical Specifications
| Specification | Value |
|---|---|
Surge Power | 7000VA |
Transfer Time | 10ms (For personal Computer); 20ms (For Home Appliances) |
Overload Protection | 5s@≥140% load; 10s@100%-140% load |
10ms (For personal Computer); 20ms (For Home Appliances) | 96% |
Waveform | Pure Sine wave |
Nominal Voltage | 220/230VAC ±5% |
Frequency | 50/60 Hz |
Peak Efficiency (Battery to INV) | 93% |
| Specification | Value |
|---|---|
Rated Power | 3.5KVA/3.5KW |
| Specification | Value |
|---|---|
Lithium Battery Activation | YES |
Floating Charge Voltage | 27 VDC |
Charging Method | CC/CV |
Lithium Battery Communication | YES (RS485) |
Battery Voltage | 24 VDC |
Overcharge Protection | 33 VDC |
| Specification | Value |
|---|---|
Operating Temperature Range | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Specification | Value |
|---|---|
Package Dimensions (D X W X H) | 465*380*175 mm |
Dimensions (D X W X H) | 358*295*100 mm |
Net Weight (Kgs) | 7 |
Communication Interface | RS232+RS485 |
| Specification | Value |
|---|---|
Max. AC Charge Current | 80A |
Max. PV Array Power | 4200W |
Max. Solar Charge Current | 100A |
Max. Solar Input Current | 18A |
PV Array MPPT Voltage Range | 60VDC-500VDC |
Solar Charger Type | MPPT |
Max. Charge Current (AC+PV) | 100A |
Max. PV Array Open Circuit Voltage | 500 VDC |
