NEON Series
In Stock

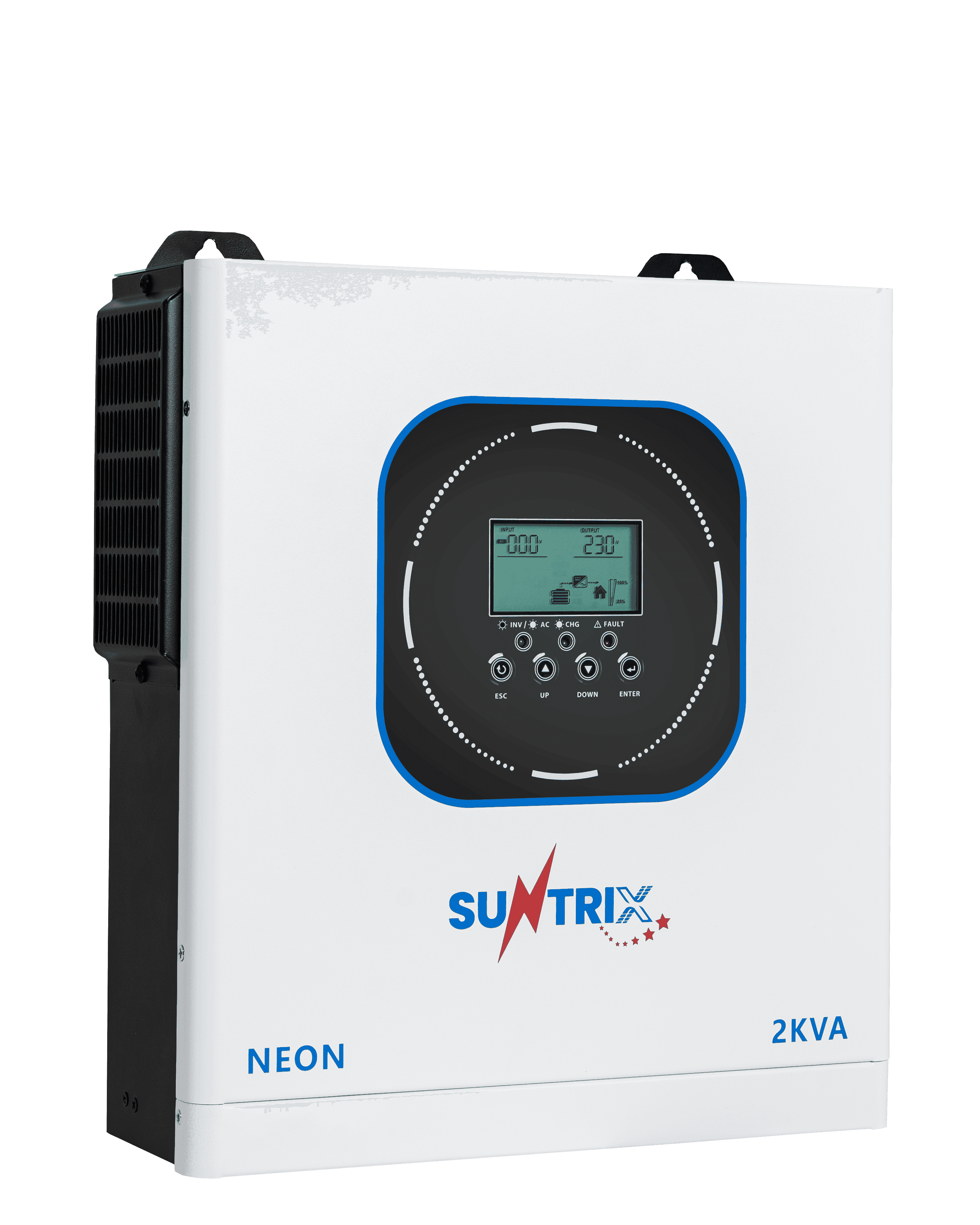

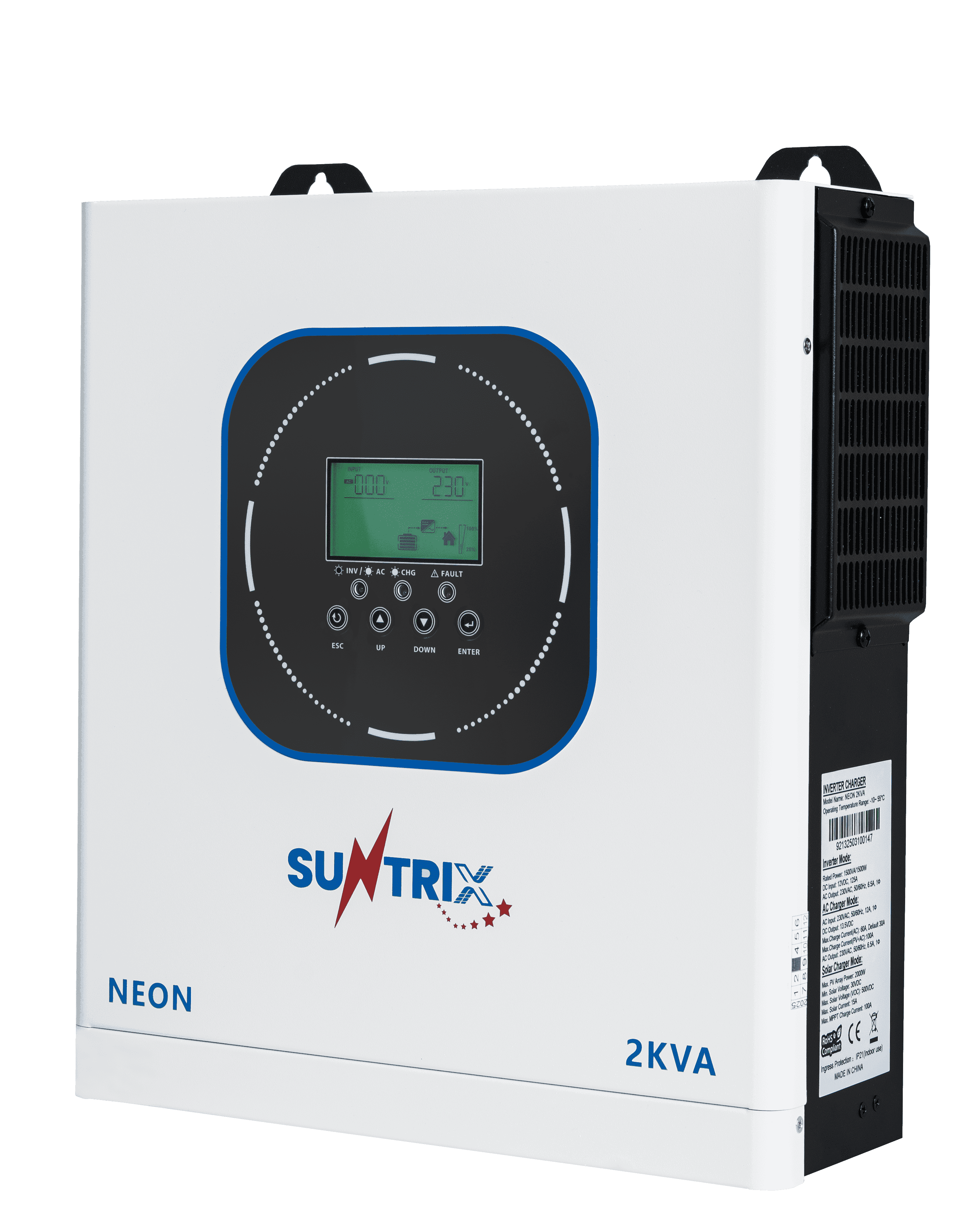

NEON 2KVA
5.0 (1,293 reviews)
Compact and energy-efficient 2KVA solar inverter designed for small homes. Ensures stable power output, smart battery management, and reliable performance for daily energy needs.
Key Specifications
Power
2kW
Efficiency
96%
5 Year Warranty
NEPRA Certified
Free Installation Support
Specifications
Technical Specifications
| Specification | Value |
|---|---|
Storage Temperature | -15°C to 60°C |
Operating Temperature Range | -10°C to 50°C |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Specification | Value |
|---|---|
Charging Method | CC/CV |
Battery Voltage | 12Vdc |
OverCharge Protection | 14.1Vdc |
Floating Charge Voltage | 13.5Vdc |
| Specification | Value |
|---|---|
Battery Wake-up Function | YES |
Capacity | 1500VA/1500W |
| Specification | Value |
|---|---|
Communication Interface | RJ45 For WiFi |
Dimensions (D x W x H) | 330*278*98 mm |
Net Weight (kgs) | 3.8 |
Package Dimensions (D x W x H) | 400*365*174 mm |
| Specification | Value |
|---|---|
Max. PV Array Open Circuit Voltage | 500VDC |
Max. PV Array Power | 2000W |
Max. Solar Charge Current | 100A |
Solar Charger Type | MPPT |
PV Array MPPT Voltage Range | 30VDC-500VDC |
Max. Charge Current (AC+PV) | Max. Charge Current (AC+PV) |
Max. Solar Input Current | Max. Solar Input Current |
Max. AC Charge Current | 60A |
| Specification | Value |
|---|---|
Acceptable Voltage Range | 170-280VAC (For personal Computer); 90-280VAC (For Home Appliances) |
Nominal Voltage | 230VAC |
Frequency | 50/60 Hz (Auto sensing) |
| Specification | Value |
|---|---|
Peak Efficiency (Battery to INV) | 93% |
Surge Power | 3000VA |
Nominal Voltage | 220/230VAC ±15% |
Peak Efficiency (PV to INV) | 96% |
Frequency | 50/60 Hz |
Crest Factor | 3:01 |
Admissible Power Factor | 0.6-1 (inductive or capacitive |
Waveform | Pure Sine wave |
Transfer Time | 10ms (For personal Computer); 20ms (For Home Appliances) |
Overload Protection | 5s@≥140% load; 10s@100%-140% load |
