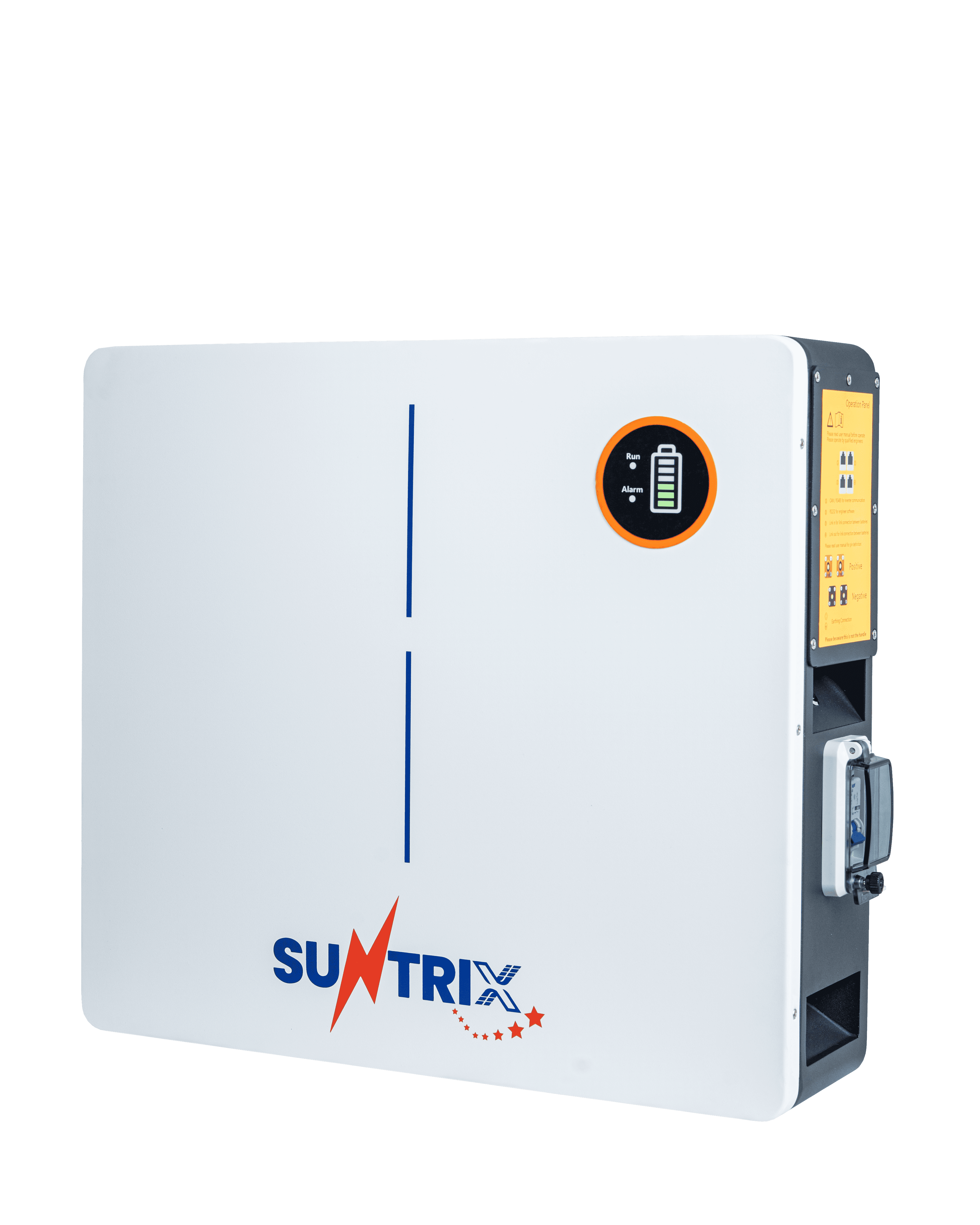

Suntrix POWERHUB – W5.12AC (IP65) - Lithium Battery — image 1

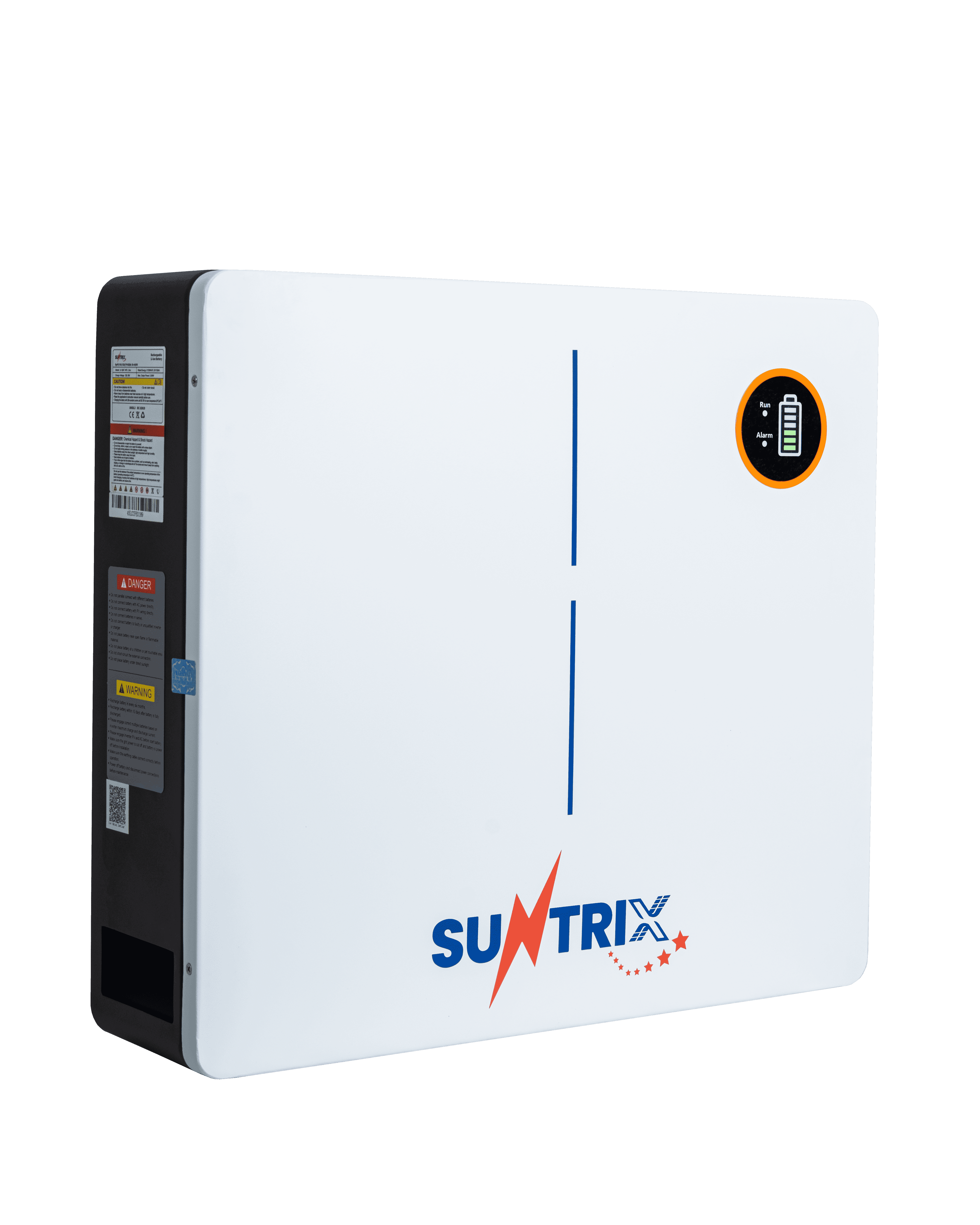

Suntrix POWERHUB – W5.12AC (IP65) - Lithium Battery — image 2
Suntrix POWERHUB – W5.12AC (IP65) - Lithium Battery thumbnail 1
Suntrix POWERHUB – W5.12AC (IP65) - Lithium Battery thumbnail 2

Power Hub

Bestseller

In Stock

Suntrix POWERHUB – W5.12AC (IP65) - Lithium Battery

5.0 (55 reviews)

The Suntrix PowerHub W5.12AC is a high-performance lithium energy storage solution built for medium-sized solar systems. Featuring scalable capacity, advanced battery management, and IP65-rated durability, it ensures efficient energy utilization and dependable backup power for homes and small businesses.

Key Specifications

  • Battery Capacity

    5.12 kWh

  • Battery Type

    LiFePO4 Lithium

  • Protection Rating

    IP65

Get a Quote

5 Year Warranty

NEPRA Certified

Free Installation Support

Specifications

Technical Specifications

SpecificationValue

Environment

Indoor

Discharge Temperature

-20~60ºC

Cooling

Natural cooling

Charge Temperature

0~55ºC

Cell Technology

Lithium iron phosphate (LiFePO4)

Discharge Cut-Off Voltage

45.6V

Storage Environment (50% State Of Charge)

20ºC~45ºC in three months; 25±3ºC over three months; Humidity: 65±20%RH

Nominal Voltage

51.2V

Installation

Wall-mounted

Protection Rating

IP65

Life Cycle

6000 times @80%DOD

Energy

5120Wh

Instantaneous Discharge Current

200A/1s

Recommend Charge/Discharge Current

50A

Maximum Continuous Charge/Discharge Current

100A

Certificates

CB, IEC62619, UL1973, UKCA, CE-EMC, CE-GPSD, EN62169, UN38.3, MSDS

Rated Capacity

100Ah

Charging Cut-Off Voltage

56.16V
